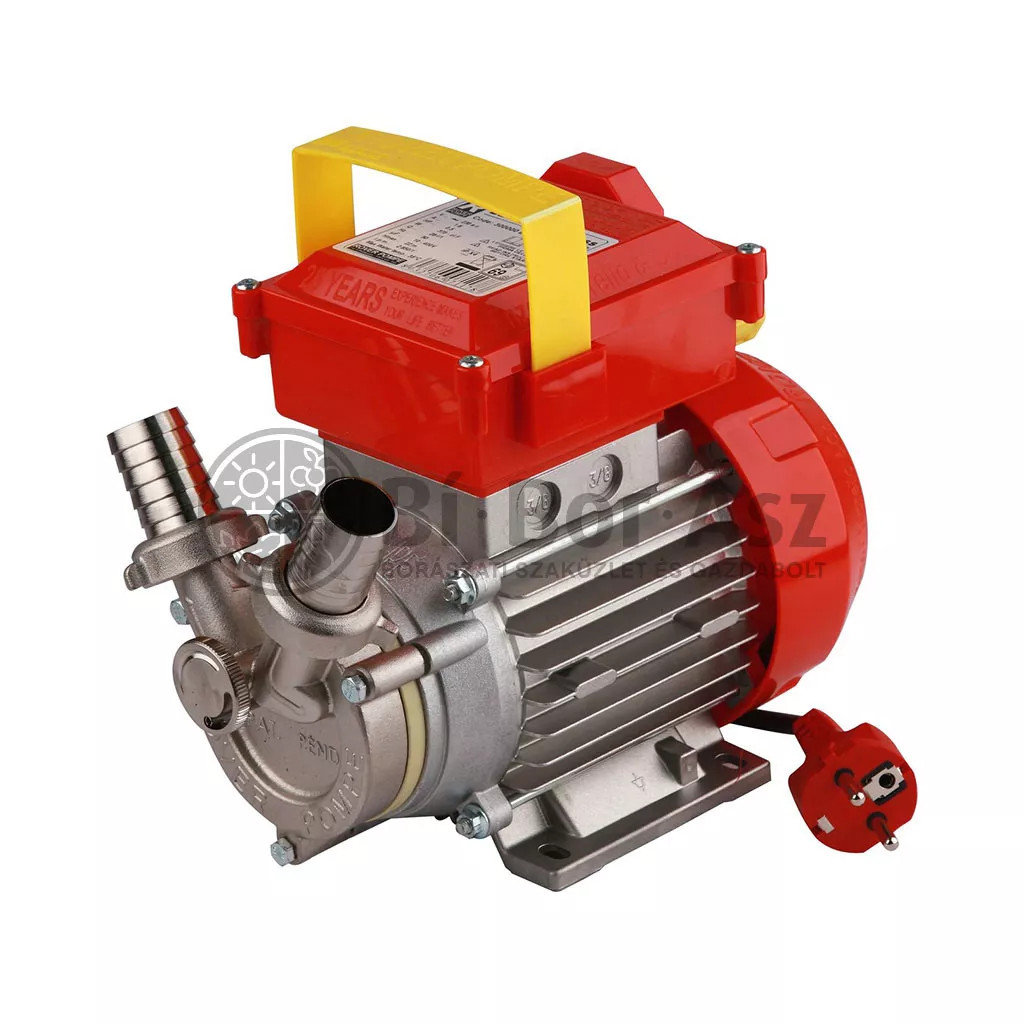

Rover NOVAX 25-M - By-Pass pump (730000 BP)

What is this?

This semi-professional self-priming liquid ring pump is the Rover NOVAX 25-M model, which has a star geometry impeller and a high efficiency motor. The basic version provides a double direction of rotation, so the pump performs excellently even in continuous operation. Its special hydraulic geometry enables operation even if there are air bubbles in the suction fluid.

NOVAX™ Technology

The pump uses special NOVAX™ technology, thanks to which all its surfaces are specially designed for temporary contact with food liquid. This ensures greater resistance to chemicals and wear, thus providing a reliable solution in the long term.

How does it work?

The suction capacity of the liquid ring pump is achieved by simply filling the pump body through one of the hose holders. The suction capacity remains active in both directions of rotation, so it flexibly adapts to various usage situations. The built-in bypass allows the pump flow to be adjusted between 50% and the maximum value.

What liquid can it transport?

The Rover NOVAX 25-M pump is ideal for transporting any clean, commonly used liquid that is not chemically aggressive or abrasive. The pump can handle water, wine, milk, vinegar, low viscosity oil solutions, neutral liquid detergents and diesel. The viscosity of the fluid must not exceed 4 cps in free flow and 20 cps in intermittent, free flow and in the presence of a supervising operator.

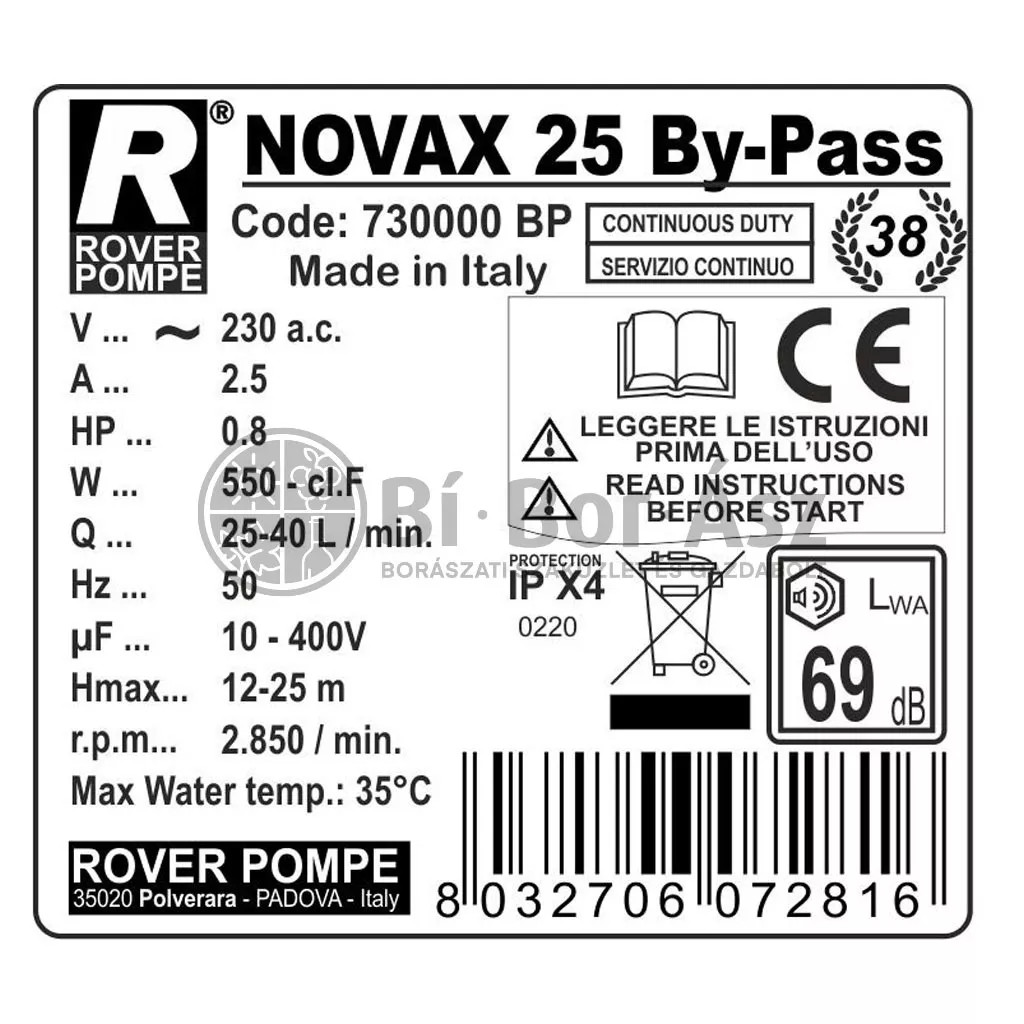

Specifications

• Distance between fixing holes: 800 × 100 mm
• Angle between fittings: 60°
• Diameter of fittings: 25 mm

This pump is an excellent choice for wineries and other food industry applications where reliability and efficiency are required.
