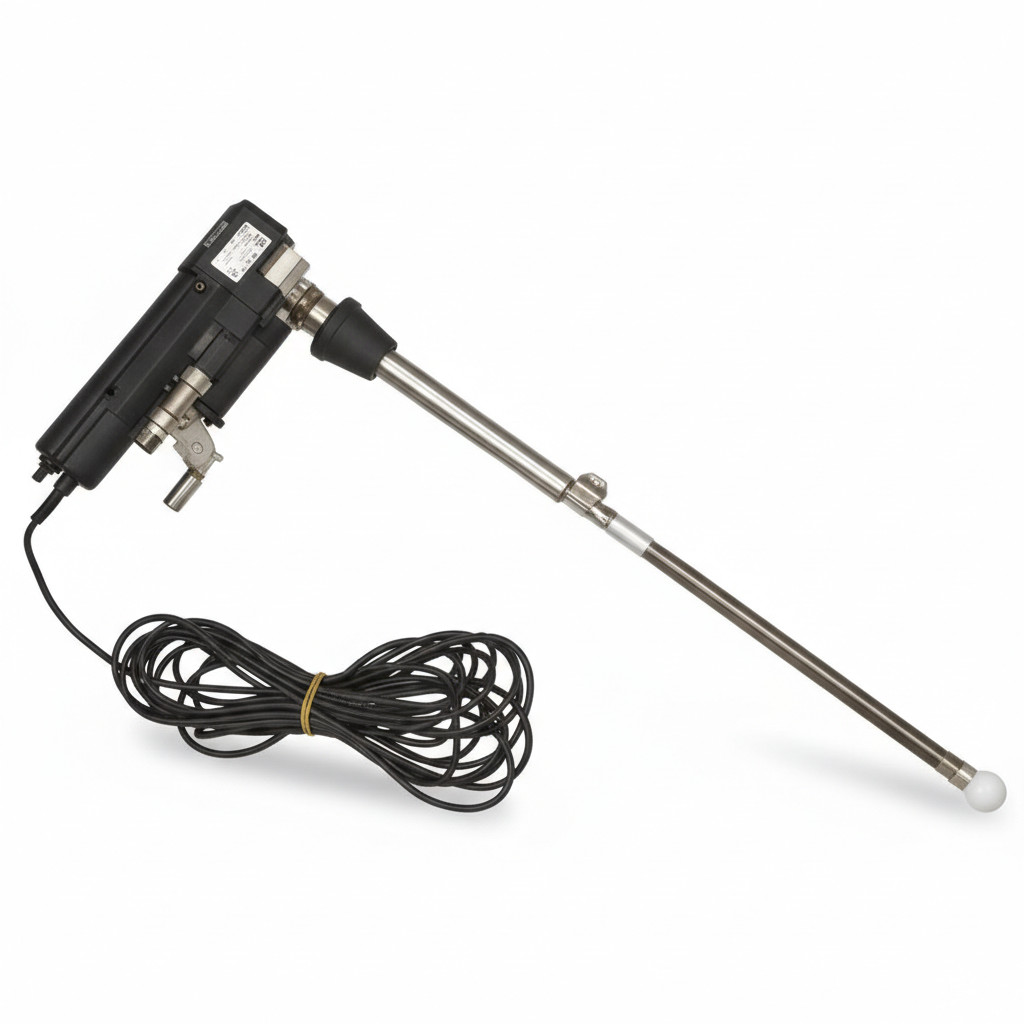

Barrique barrel washer exhaust M28E

Product features

Barrique barrel washer extractor M28E is a professional tool specially designed for winemaking purposes. Thanks to its stainless steel design, it is extremely durable and reliable, resistant to moisture and chemical effects that often occur in winemaking.

Technical data

• Water supply connection: AR1 AM22, which ensures a reliable water supply.
• Flow rate: Can be adjusted between 10 and 25 liters/minute, so it flexibly adapts to different cleaning needs.
• Nominal pressure: 140 bar, which ensures effective cleaning.
• Nozzle connection: 2 M4, which allows the connection of various cleaning heads.
• Minimum operating pressure: 40 bar, so that the equipment can also operate at lower pressure.
• Maximum temperature: 90 °C, which also allows cleaning with hot water.

Performance and operation

• Washing cycle time: 3 minutes, which enables fast and efficient cleaning.
• Rotational speed of the main shaft: 14 rpm, thus thoroughly cleaning the inside of the barrel.
• Electric motor: 8W 12V DC, low energy consumption.
• Power supply: 230V-50Hz, which matches the standard mains voltage.
• Minimum hole passage: 40mm, which ensures that the washing head fits easily inside the barrel.
• Length of power cable: 10m, which provides enough room for movement during use.

Special features

• Flexible, shortened version: Ideal for smaller rooms where space is limited.
• Usage: Can only be operated with a high-pressure washer, which ensures cleaning efficiency.

The Barrique barrel washer suction M28E is an essential part of the winemaking equipment, which provides quick and thorough cleaning for all types of wine barrels. It is easy to operate and maintain, so it offers a long-term solution for winemakers.
