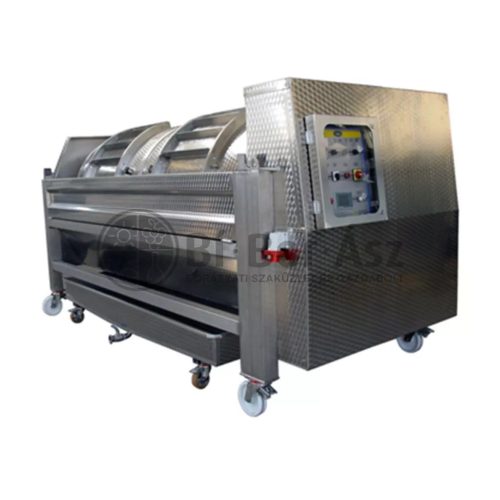

Pneumatic press Zambelli PN ZETA-S TOP 50 hl

Name: Pneumatic press Zambelli PN ZETA-S TOP 50 hl
Brand: Zambelli Enotech
SKU: 31524
Availability: OutOfStock

Item number:

31524

Brand:

Zambelli Enotech

The Zambelli PN ZETA-S TOP 50 hl is a high-tech pneumatic press, ideal for pressing whole bunches, peeled or fermented grapes. Thanks to the 50 hl drum capacity, it can handle up to 9,000 kg of crushed grapes. Advanced programming options such as Classic, Sparkling and Mix ensure flexible use. The powerful, 11.5 hp motor and the quiet compressor guarantee efficient operation.

Out of stock

Villány store

Out of stock

Also available for pickup in our store, estimated delivery 4–5 working days

Details

Technical data

The Zambelli PN ZETA-S TOP 50 hl pneumatic press is a cutting-edge tool for grape processing. Its drum capacity is 50 hl, which allows pressing up to 3,500 kg of bunches or 9,000 kg of fermented grapes. It has two loading doors through which grapes can be easily inserted.

Operation and Performance

The power of the press is 11.5 HP and operates on a three-phase voltage of 440 V. It weighs 1,880 kg, making it a stable and reliable tool for vineyards. The device is equipped with a quiet compressor and fan, which ensures comfortable and efficient work.

Programming Options

The machine has three pre-set press programs: normal, slow and fast, and also offers three customizable programs (Classic, Sparkling and Mix), each with 5 memory slots. The Classic program contains 6 operating phases, while the Sparkling program performs the pressing step by step. The Mix program combines the advantages of the two programs.

Effective and Safe

The press is equipped with a PLC touch screen control panel, which ensures automatic operation, but manual control is also available using the physical pressure gauge and individual controls. The safety photocell and the sliding must collection container with a float sensor guarantee safe operation.

Italian Quality

Made in Italy, ensuring high quality and reliability. The Zambelli PN ZETA-S TOP 50 hl pneumatic press is the ideal choice for professional grape processing, ensuring efficient and high-quality juice extraction from all forms of grapes.
